Alinco DJ-VX46 UHF Handheld Transceiver
Model: Alinco DJ-VX46
The Alinco DJ-VX46 is a UHF FM handheld transceiver on the 16 PMR446 channels (446.00625–446.19375 MHz) at about 0.5 W, with 128 memory channels in eight groups of 16.
- Brand
- Alinco
- Output power
- About 0.5 W
- Water and dust
- IP67
- Operating temperature
- −20 to +60 °C
Product overview
The Alinco DJ-VX46 is a UHF FM handheld transceiver on the 16 PMR446 channels (446.00625–446.19375 MHz) at about 0.5 W, with 128 memory channels in eight groups of 16. It has an IP67 polycarbonate body, a 7.4 V 1800 mAh Li-ion battery and weighs 238 g with battery and antenna; VOX, CTCSS/DCS tone signalling and voice scrambling are built in. It works on the PMR446 UHF channels, not the marine VHF band, so it cannot call on marine channel 16.

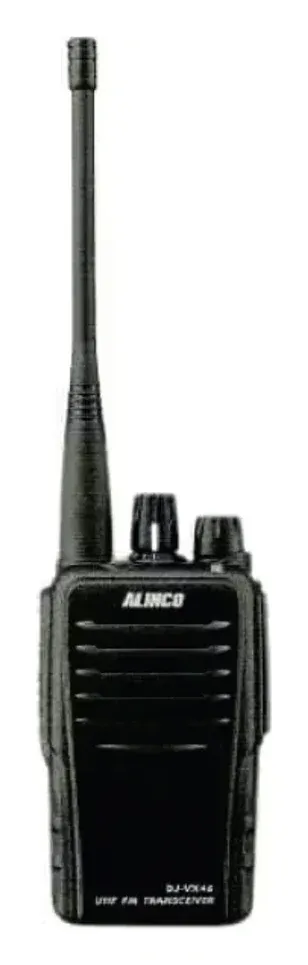

Part of Marine Electronics & Communication: The Alinco DJ-VX46 handheld UHF radio.
Key specifications
- Model
- Alinco DJ-VX46
- Brand
- Alinco
- Type
- UHF FM handheld transceiver, PMR446
- Frequency range
- 446.00625–446.19375 MHz (16 PMR446 channels)
- Memory channels
- 128 (16 channels × 8 groups)
- Output power
- About 0.5 W
- Battery
- 7.4 V 1800 mAh Li-ion (EBP-101); 2300 mAh EBP-121 optional
- Battery life
- About 14 hours (5 s transmit, 5 s receive, 90 s standby)
- Charging
- About 4 hours on the EDC-219 charger stand
- Water and dust
- IP67
- Size
- 243 × 59 × 38 mm with battery and antenna
- Weight
- 238 g with battery and antenna
- Operating temperature
- −20 to +60 °C
- Features
- VOX, CTCSS/DCS tone signalling, voice scrambler, compander
- In the box
- Battery, charger stand, AC adapter, belt clip, hand strap
