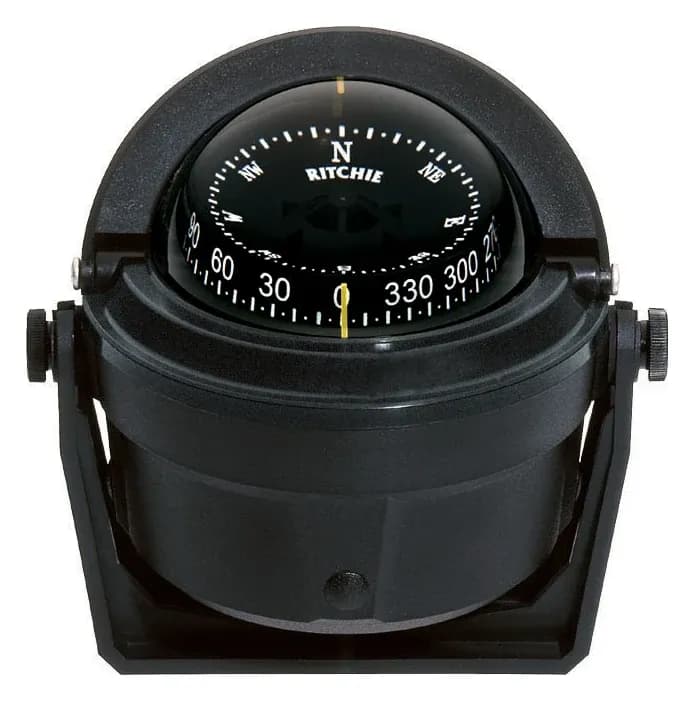

Ritchie Voyager Compass (Bracket Mount, B-81)

Product overview

Ritchie Voyager bracket-mount steering compass (B-81) with a 3 in (76 mm) CombiDial, which combines a flat card and a direct-reading dial. It sits in an adjustable, removable bracket held by thumbscrews, with built-in compensators, a movable sun shield and green night lighting, 12 V as standard.

Part of Marine Instruments: Ritchie and Navtech steering compasses.

Key specifications

Model

B-81

Brand

Ritchie

Dial

3 in (76 mm) CombiDial: flat card and direct-reading dial in one

Mounting

Adjustable and removable bracket with thumbscrews

Night lighting

Green, 12 V as standard (24 V replacement lights available)

Compensation

Built-in compensators for deviation

Sun shield

Movable

Construction

High-temperature composite

Dial movement

Sapphire jewel and hardened steel pivot

Shipping weight

About 680 g (1.5 lb)

Figures as published by Ritchie Navigation (the maker’s page), checked 7 October 2026. Say the model and voltage you need with your quote.
