Ritchie Voyager Compass (Surface Mount, S-87W)

Product overview

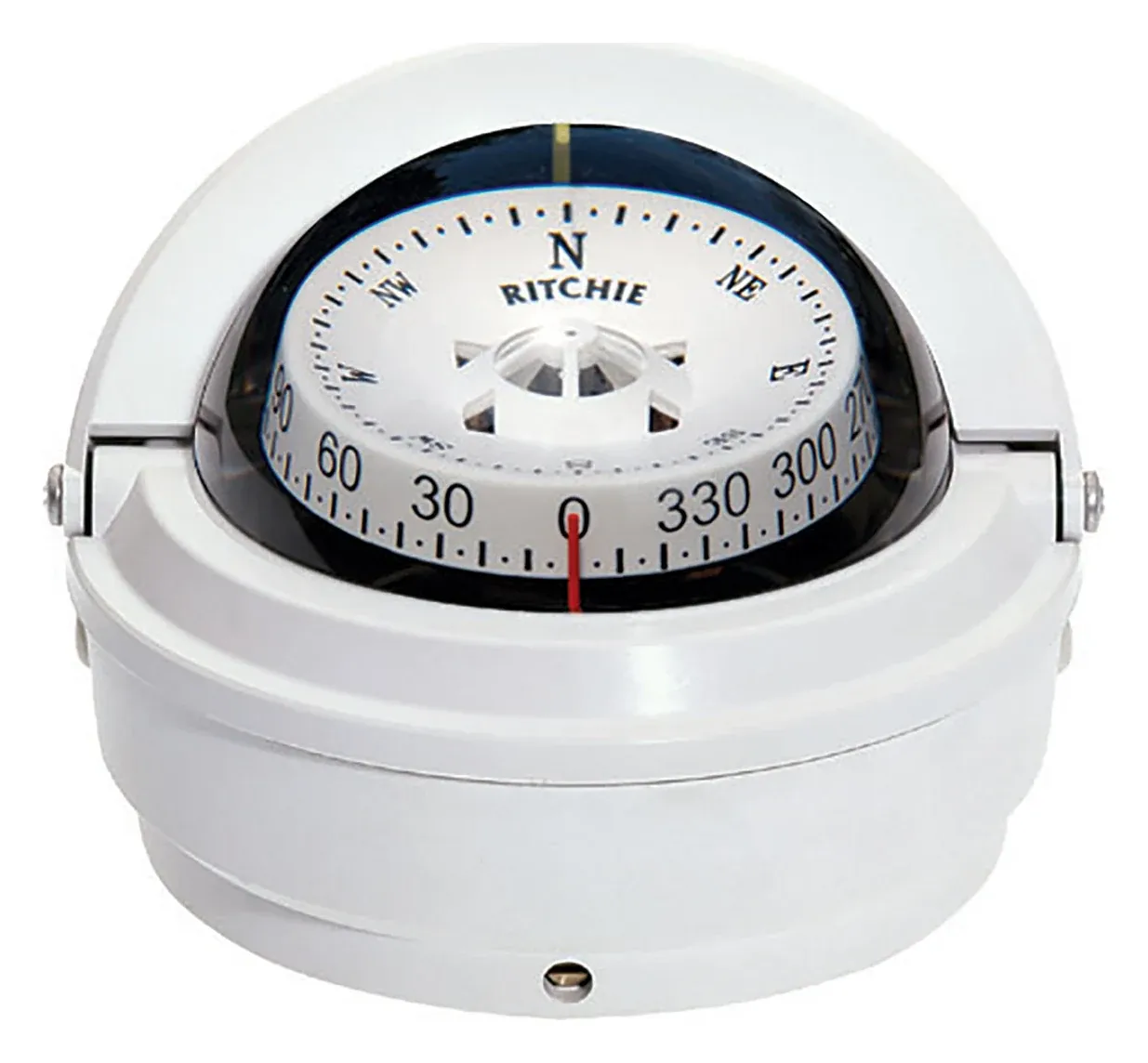

Ritchie Voyager surface-mount steering compass (S-87 series; white, as pictured, S-87W) with a 3 in (76 mm) CombiDamp dial, which combines a flat card and a direct-reading dial. It has built-in compensators, a movable sun shield and green night lighting: 12 V as standard, with 24 V and 32 V options.

Part of Marine Instruments: Ritchie and Navtech steering compasses.

Key specifications

Model

S-87W

Brand

Ritchie

Dial

3 in (76 mm) CombiDamp dial: flat card and direct-reading dial in one

Mounting

Surface mount

Night lighting

Green, 12 V as standard; 24 V and 32 V options

Compensation

Built-in compensators

Sun shield

Movable

Colours

White (S-87W, as pictured) or black (S-87)

Construction

High-temperature composite

Shipping weight

About 539 g (1 lb 3 oz)

Figures as published by Ritchie Navigation (the maker’s page), checked 7 October 2026. Say the model and voltage you need with your quote.
