Jabsco Twist 'n' Lock Manual Marine Toilet

Product overview

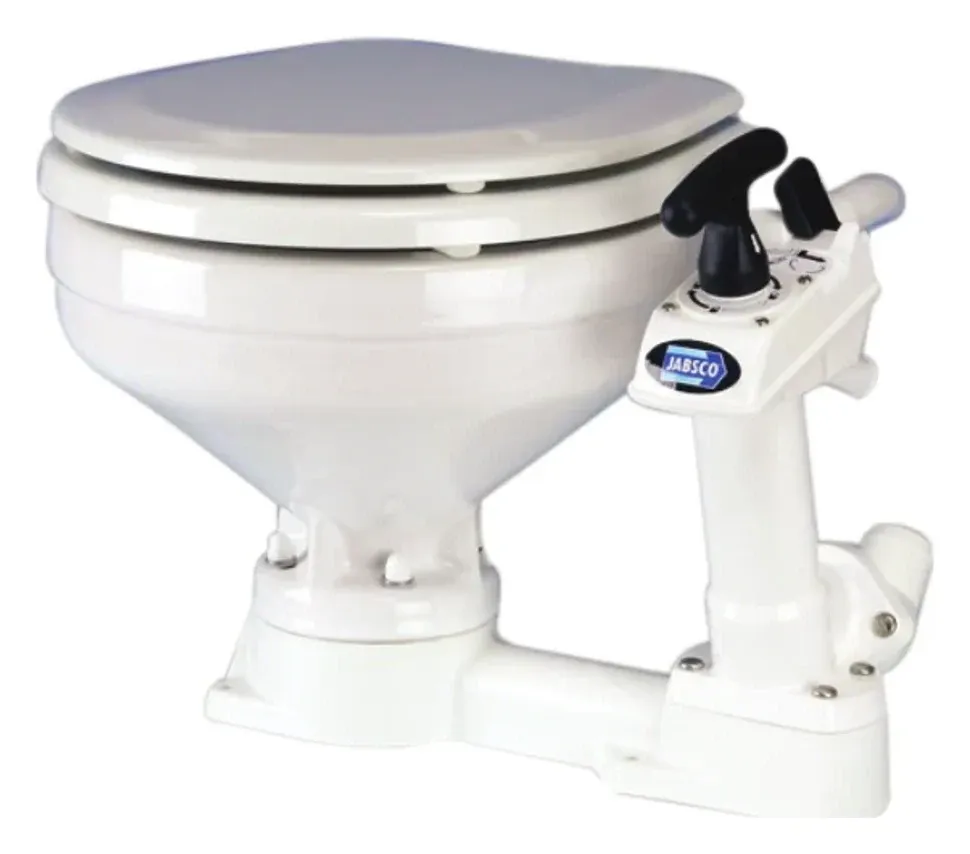

Jabsco Twist 'n' Lock manual marine toilet: a white ceramic bowl with a self-priming, double-acting hand piston pump and a separate flush-control lever. It flushes with sea, river or lake water and discharges overboard where regulations allow, or into a holding tank. A 90° turn of the pump handle locks the waste valve shut against siphonic flooding and backflow.

Part of Pumps & Plumbing: Rule bilge pumps and float switches; Jabsco water pressure and washdown pumps and a manual marine toilet.

Key specifications

Model

Jabsco 29090-5000 / 29120-5000

Brand

Jabsco

Models

29090-5000 (compact bowl); 29120-5000 and 29120-5100 (regular bowl, the -5100 with a soft-close seat)

Flush water

Sea, river or lake water only

Pump

Self-priming, double-acting piston pump

Lift and discharge

Self-primes from up to 1 m (3 ft) below the base; discharges up to 3 m (9 ft) above it

Inlet hose

19 mm (3/4 in) I.D.

Outlet hose

38 mm (1-1/2 in) I.D.; constant 38 mm waste path

Bowl

White ceramic

Materials

Pump and base in ABS or polypropylene with acetal parts; 316 stainless steel fastenings; neoprene seals

Handing

Supplied for right-hand operation; can be re-assembled with the pump on the left

Figures as published by Jabsco (the maker’s page), checked 7 October 2026. Say the model and voltage you need with your quote.
