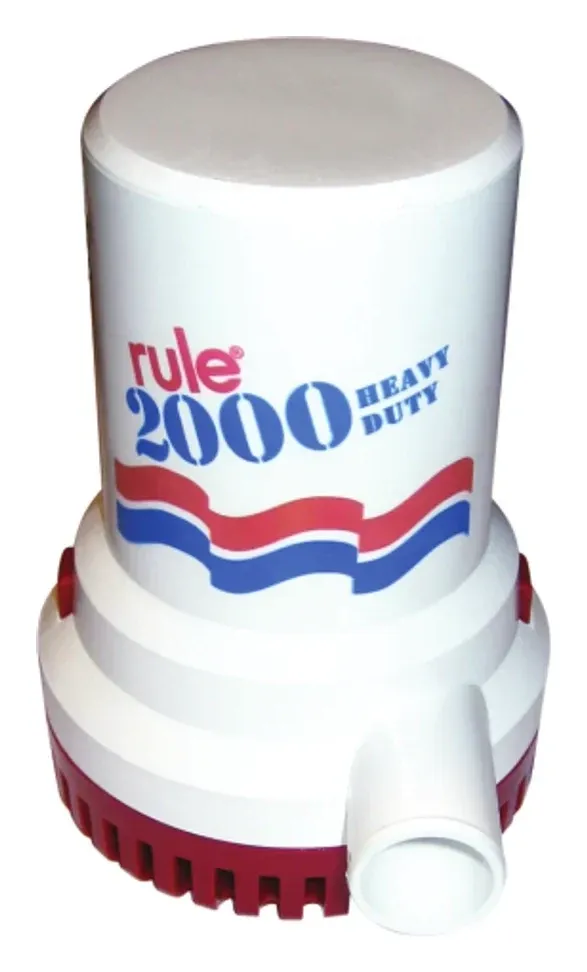

Rule 2000 Heavy Duty Bilge Pump

Product overview

Rule's 2000 GPH (7571 LPH) standard submersible bilge pump, labelled 'Heavy Duty', with a 1-1/8 in (29 mm) hose outlet. It is non-automatic and runs from a separate float or panel switch. Rule lists 12 V, 24 V and 32 V DC versions.

Part of Pumps & Plumbing: Rule bilge pumps and float switches; Jabsco water pressure and washdown pumps and a manual marine toilet.

Key specifications

Model

Rule 2000

Brand

Rule

Rated capacity

2000 GPH (7571 LPH)

Models

10 (12 V DC); 10-6UL (12 V DC, UL listed, 6 ft leads); 09 (12 V DC, Gold series, 6 ft leads); 12 (24 V DC); 11 (32 V DC)

Operation

Non-automatic; runs from a float or panel switch

Fuse

15 A (10, 10-6UL, 09); 7.5 A (12); 6 A (11)

Hose

1-1/8 in (29 mm)

Size

Height 152 mm (6 in); width 108 mm (4.25 in)

Flow by head

1480 GPH (5605 LPH) at 0 m; 1220 GPH (4620 LPH) at 1 m; 1035 GPH (3920 LPH) at 2 m

Strainer

Replacement model 278

Float switches

Rule 37A, 40A

Current draw

8.4 A at 12 V; 4.0 A at 24 V; 3.1 A at 32 V

Figures as published by Rule (the maker’s page), checked 7 October 2026. Say the model and voltage you need with your quote.
