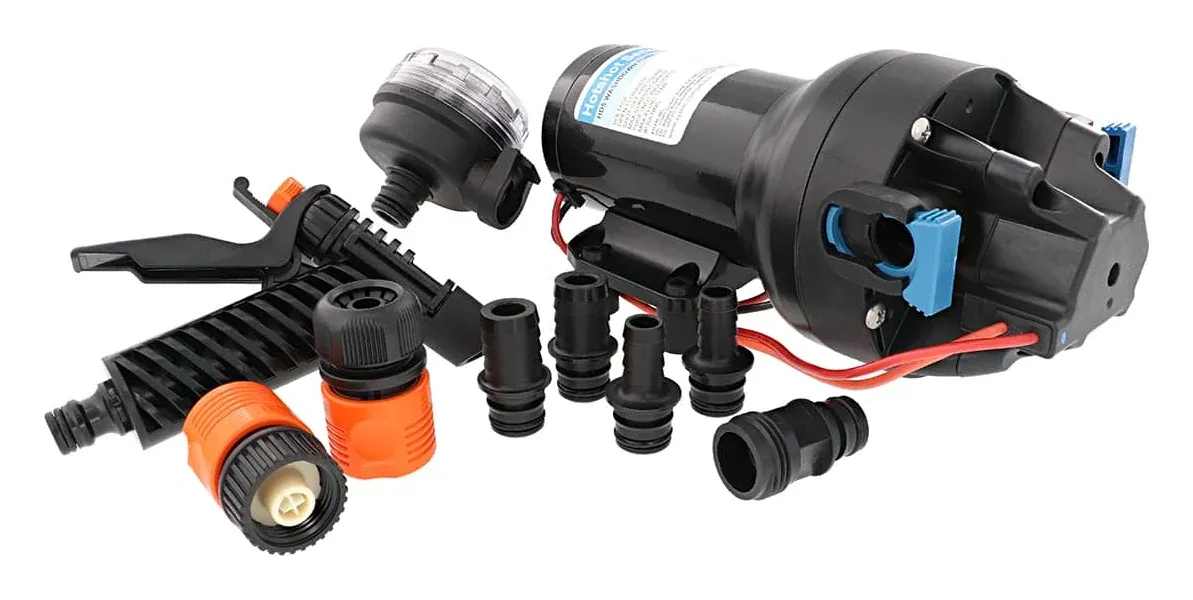

Jabsco HotShot Washdown Pump Kit (HD5 / HD6)

Product overview

Jabsco's HotShot HD5 (12 V DC) and HD6 are self-priming, five-chamber diaphragm washdown pumps with an integrated pressure switch that cuts off at 70 psi (4.8 bar), giving 5 GPM (18.9 l/min) and 6 GPM (22.7 l/min) open flow. They run dry without damage, are rated IPX6 and come with a strainer and a trigger spray nozzle. They replace the discontinued Par-Max 5.0 washdown kit (32700 series).

Part of Pumps & Plumbing: Rule bilge pumps and float switches; Jabsco water pressure and washdown pumps and a manual marine toilet.

Key specifications

Model

HD5 / HD6

Brand

Jabsco

Models

HD5: P501J-119N-3A (12 V DC); P501J-119N-4A (12 V DC, with a 25 ft hose coil). HD6: P601J-219N-3A (12 V DC); P601J-219N-4A (12 V DC, with a 25 ft hose coil); P602J-219N-3A (24 V DC)

Replaces

Par-Max 5.0 kit 32700-0392 (by P501J-119N-3A) and 32700-0394 (by P602J-219N-3A)

Open flow

5 GPM (18.9 l/min) HD5; 6 GPM (22.7 l/min) HD6

Cut-off pressure

70 psi (4.8 bar)

Maximum current

HD5 12 V: 16 A. HD6 12 V: 19 A

Fuse

HD5: 20 A. HD6: 25 A (12 V), 15 A (24 V). Not included

Ports

Quick-connect; 3/4 in (19 mm) hose barbs and a 3/4 in garden-hose thread fitting (HD5 also 1/2 in barbs)

In the kit

90° quick-connect 40-mesh strainer and quick-connect trigger nozzle; the -4A kits add a 25 ft hose coil

Self-priming

Up to 2.4 m (8 ft) HD5, 2.1 m (7 ft) HD6; runs dry without damage

Ingress protection

IPX6

Duty

Intermittent

Water temperature

0–60 °C

Size

HD5 244 × 127 × 119 mm; HD6 259 × 129 × 119 mm (L × W × H)

Figures as published by Jabsco (the maker’s page), checked 7 October 2026. Say the model and voltage you need with your quote.
